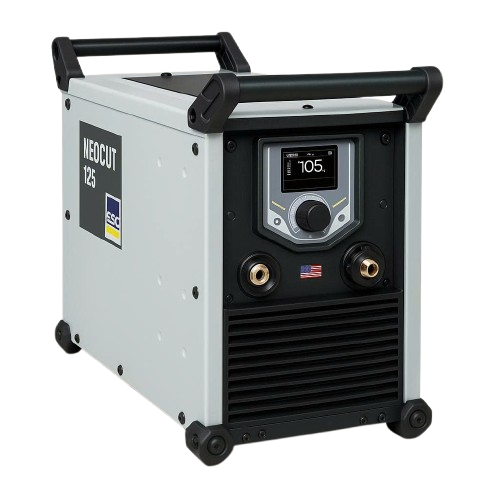

The NEOCUT 125 is a plasma cutter with a duty cycle of 100% at 125 A for cutting materials up to 57 mm thick in industrial environments. It is equipped with automatic air pressure management, in all modes, providing optimal cut quality throughout the life of the consumables. It can also be connected to a cutting table, its «Marking» mode is perfect for tracking and identifying parts
AIR PRESSURE
– Automatic pressure and airflow management independent of torch length and operating mode (cutting, boring and marking)
– Optimize the life of consumables
MAXIMUM PRODUCTIVITY
– Duty cycle 100% at 125 A (40°C)
– Marking mode, ideal for tracking and identifying parts.
– Cuts most materials (mild, stainless, tempered, HLE), aluminum, copper, etc.
– Cooling design optimized for operation in industrial environments.
– Can be connected via one of 3 optional CNC kits for use on an automatic cutting table.
– IP 23 reinforced housing.
SIMPLE TO USE
– Ergonomic interface with OLED display (7 languages)
– 6 working modes: Cutting, Cutting with trigger lock, Hole cutting, Hole cutting with trigger lock, Punching plate cutting, Marking.
– Counter to monitor wear of consumables (nozzles and electrodes).
– Pneumatic diagnostics (humidity check and air pressure control)
– HF-free arc ignition to avoid disturbances that could damage nearby electronic equipment.
– Simplified software updates via USB cable without any tools or disassembly required.
HIGH EFFICIENCY FLAMES
– High-end torch with 2 lengths (6 m / 12 m), 2 types (manual / automatic) and 2 powers for automatic cutting (125 A / 160 A).
– Wide selection of consumables to suit all metal thicknesses.
– Designed to be shock and heat resistant.
– Quick connection/disconnection of soldering iron without tools for transportation or maintenance.
– Easy to use trigger mechanism for more comfort.
 |
|
 |
A |
A |
 |
GOUGED | k systemair | EN
60974-1 (40°C) |
 |
 |
 |
 Protected
& Compatible generator (+/-15%) |
|||||||
| Xuyen | Cut cleanly | Separate | |||||||||||||||
| Fe | Al/CrNi | Fe | Al/CrNi | Fe | Al/CrNi | Withdrawal rate | Inlet pressure (bar) | MT/AT 125
L/min |
AT 160
L/min |
cm | kg | ||||||
| 400V 3~ | 63 | 20 ÷ 125 | 25 | 25 | 40 | 40 | 57 | 57 | 12Kg/h | 5 ÷ 9 | 305 | 420 | 125A @ 100% | 69 x 40 x 61 | 36 | IP23 | 30 kW |
